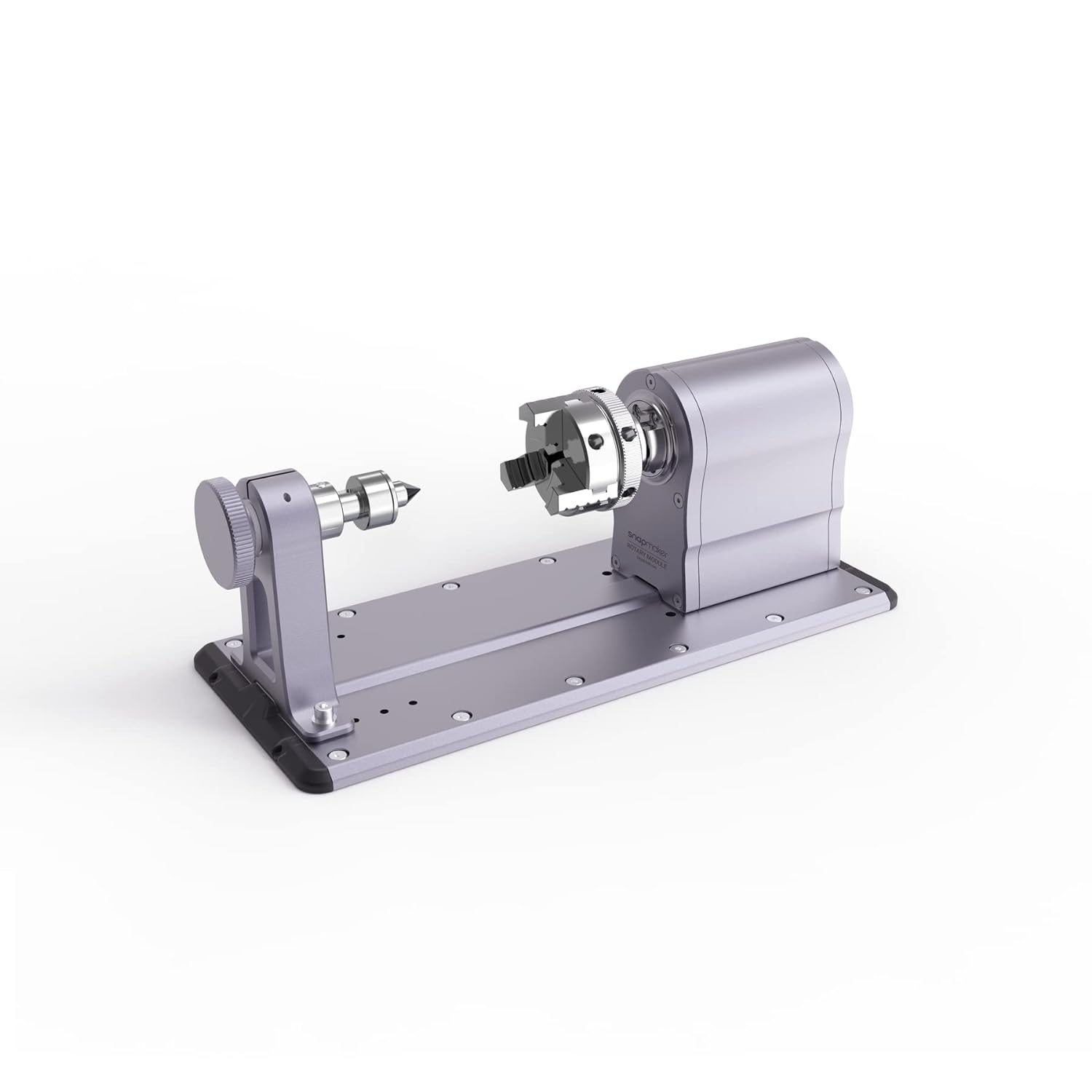

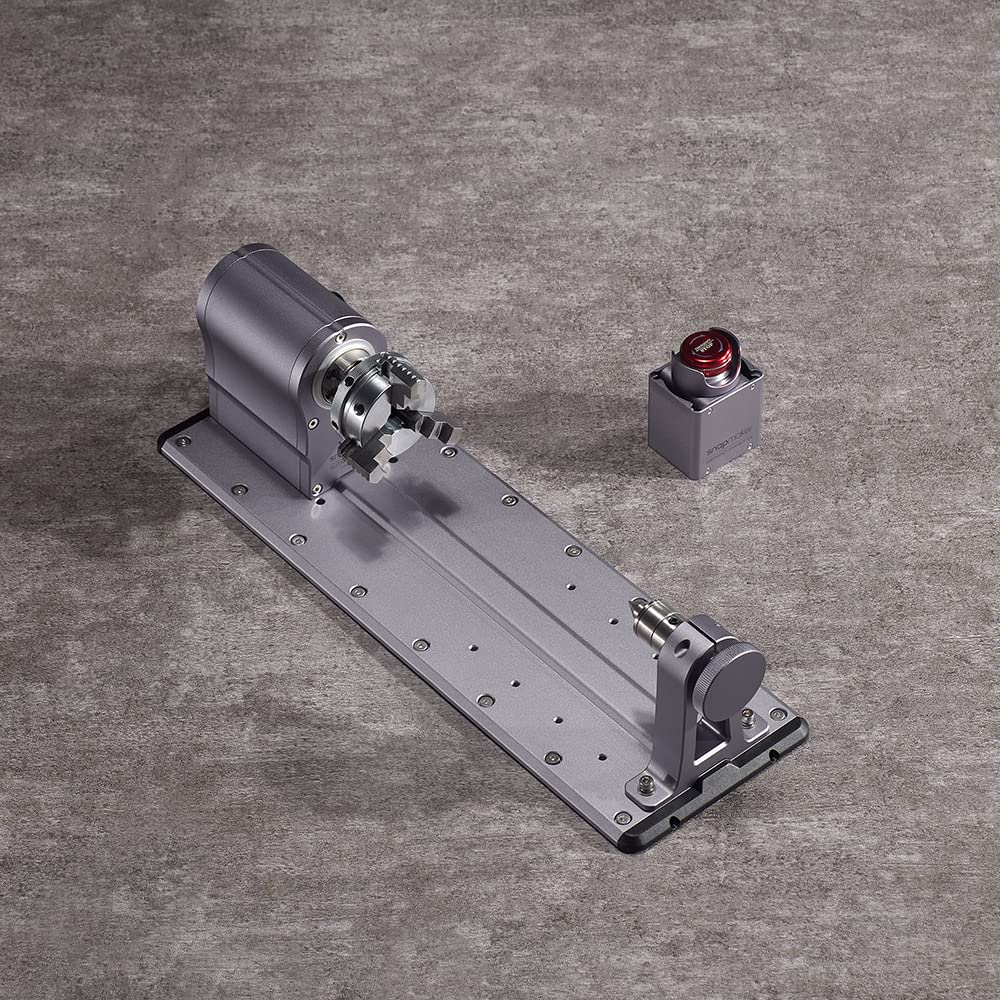

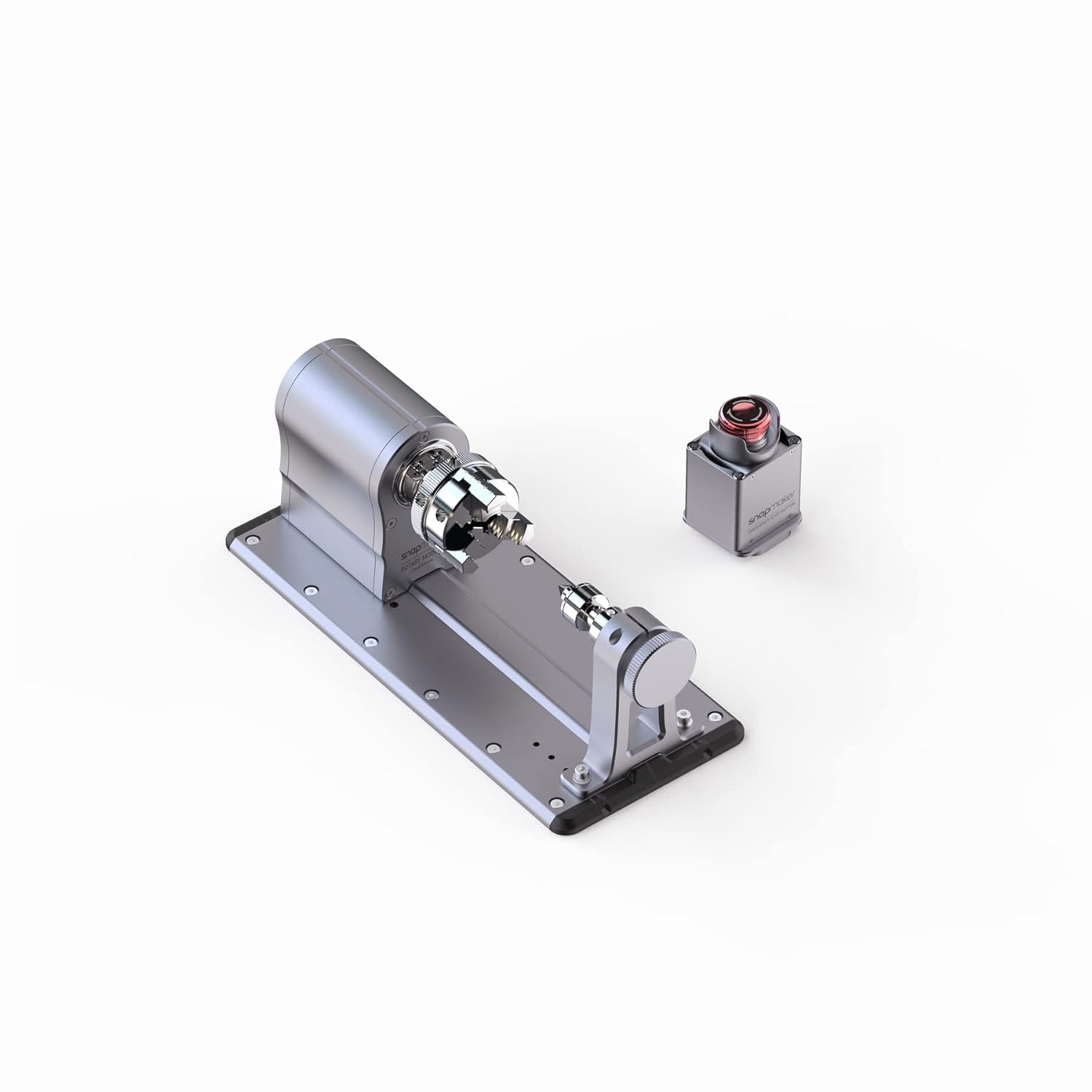

Snapmaker 2.0 A250/ A250T Rotary Module

Snapmaker 2.0 A250/ A250T Rotary Module
(0 reviews)
Product Features

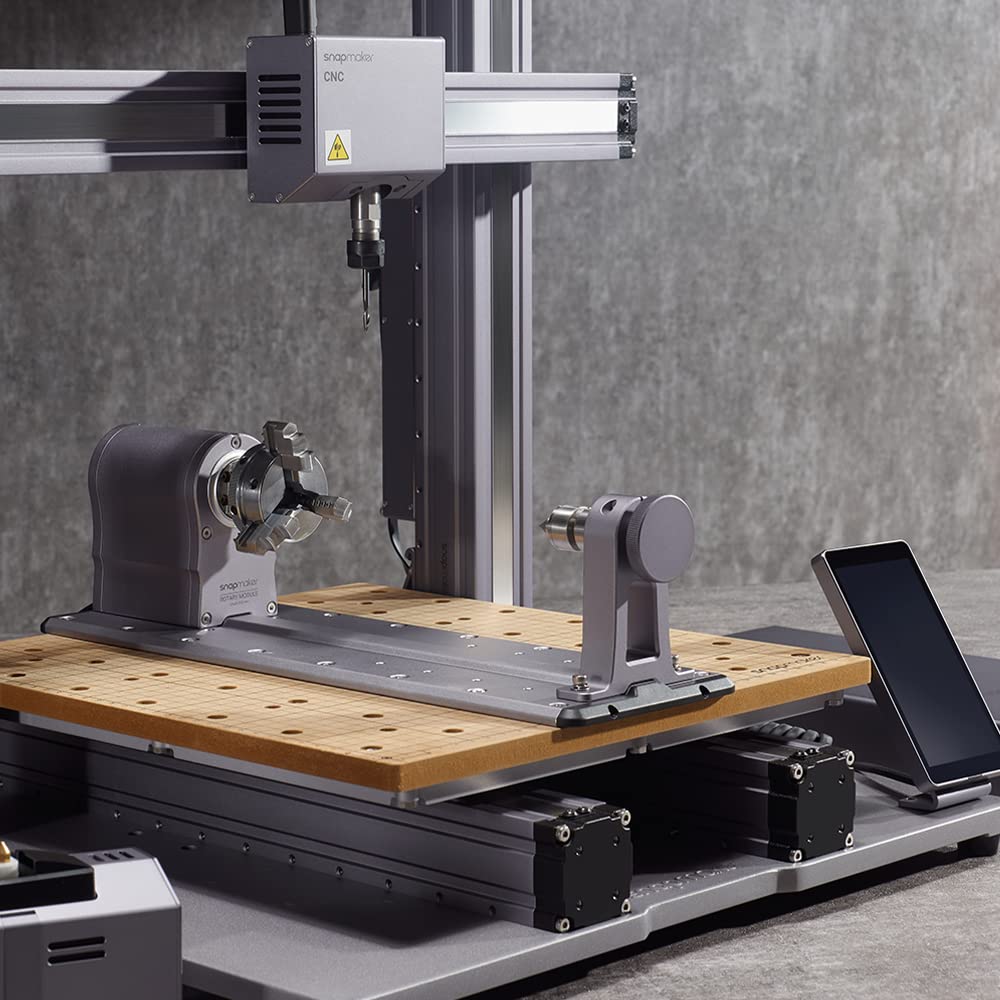

• Snapmaker 2.0 Rotary Module enables your Snapmaker 2.0 to rotary CNC carving and laser engraving. It uses strain wave gearing and packs a 100:1 speed reducer that converts the power to a lower output speed. This allows the 3-jaw chuck to rotate with a minimum angle of 0.1°. Now, you can make on uneven and irregular surfaces without missing a step

₹74619.00
- +
Add to cart
Add to wishlist Remove from wishlist Compare Ask a question Share

Guarantee Safe Checkout:

  • card
  • card
  • card
  • card

Estimated delivery time: 4-5 business days

Free shipping on all orders

Frequently Bought Together
img-product
eSUN ePLA Matte 3D Printing Filament Rainbow,1.75mm, Net Weight-1kg
₹1409.00
img-product
Creality HP-PLA Ultra 3D Printing Filament Black ,1.75mm,Net Weight-1kg
₹1599.00
img-product
Creality PLA 3D Printing Filament Fluorescent Yellow ,1.75mm,Net Weight-1kg
₹1499.00
img-product
SUNLU PLA 3D Pen Filament - 5M - Set of 20
₹949.00
Total price:
₹60.00
Snapmaker 2.0 A250/ A250T Rotary Module
Add to cart
  • Desktop 4-axis machining
  • Ultra precision machining with strain wave gearing
  • Free 4-axis software support
  • Intuitive user experience with Origin Assistant
  • Auto Focus for laser enabled
  • Swappable 3-jaw chuck that can clamp inwards or outwards
  • Base plate can be installed on different positions
  • Compatible with all current and future Snapmaker 2.0 addons
  • Fully utilize features on the enclosure and emergency stop button.
  • Snapmaker 2.
  • 0 Rotary Module enables your Snapmaker 2.
  • 0 to rotary CNC carving and laser engraving.
  • It uses strain wave gearing and packs a 100:1 speed reducer that converts the power to a lower output speed.
  • This allows the 3-jaw chuck to rotate with a minimum angle of 0.
  • 1°.
  • Now, you can make on uneven and irregular surfaces without missing a step.
  • Dimensions : 120 width × 284 depth × 108 height (mm)
  • Weight : 2.2 kg
  • Material Length Range : 10-70 mm, with tailstock, 10-125mm, without tailstock
  • Maximum Material Size : 70 length × 68 radius (mm) with tailstock, 125 length × 68 radius (mm) without tailstock
  • Material : Aluminum alloy
  • Maximum Angular Speed : 45°/s
  • Rotation Type : 360° continuous
  • Rotational Speed Conversion : 100
  • Precision : 0.1° Angle Precision, 0.2° Precise Control
  • Inward-clamping Range : 1 - 30 radius (mm）
  • Outward-clamping Range : 10 - 50 radius (mm)
  • Supported Software : Snapmaker Luban, Autodesk Fusion 360, Vectric Aspire
  • Supported Materials for CNC : Wood, tooling and modeling board, plastic, bamboo, wax, more being tested
  • Supported Materials for Laser : Wood, leather, plastic, fabric, paper, non-transparent acrylic
  • Supported File Types : .stl, .bmp, .svg, .dxf, .jpg, .jpeg, .png
