Snapmaker : E-Ray 40W Laser Engraver & Cutter

Snapmaker : E-Ray 40W Laser Engraver & Cutter
(0 reviews)
Product Features

• 40W Laser Power: High cutting and engraving precision.

• Large Working Area: 400 x 600 mm for various projects.

• Air Assist System: Ensures cleaner cuts and reduces smoke.

• Adjustable Focus: Optimizes for different materials.

• Wide Material Compatibility: Works with wood, acrylic, leather, and more.

• Advanced Software: Compatible with Snapmaker Luban for easy design control.

• Sturdy Construction: Built for stable, long-lasting performance.

• Safety Features: Includes emergency stop and protection mechanisms.

₹174999.00
- +
Add to cart
Add to wishlist Remove from wishlist Compare Ask a question Share

Guarantee Safe Checkout:

  • card
  • card
  • card
  • card

Estimated delivery time: 4-5 business days

Free shipping on all orders

Frequently Bought Together
img-product
Anycubic Photon Resin Vat Anodized Aluminium with FEP Film
₹4799.00
img-product
Creality HALOT SKY 2022 Print Screen Kit
₹19339.00
img-product
Snapmaker Rotary Module 2.0 Artisian/A350/A350T
₹64999.00
img-product
Creality BASF Ultra series PLA 3D Printing Filaments Black ,1.75mm,Net Weight-1kg
₹4599.00
Total price:
₹60.00
Snapmaker : E-Ray 40W Laser Engraver & Cutter
Add to cart
  • [Strong cutting capabilities]: For Snapmaker 40W laser engraver,it delivers superb performance with the most cutting-edge laser beam splitter and beam shaping optics. It can cut 20mm Pinewood or 15mm Basswood Plywood in one pass.
  • [Smart Air Assist]: Snapmaker Ray laser engraving machine is equipped with Air Assist Pump. Air Assist can blow the fumes away and prevent charring as well as keep the laser lens clean. Snapmaker software Luban can let you enable Air Assist only on cutting layers, saving you the bother of manually turning it on or off for different layers.

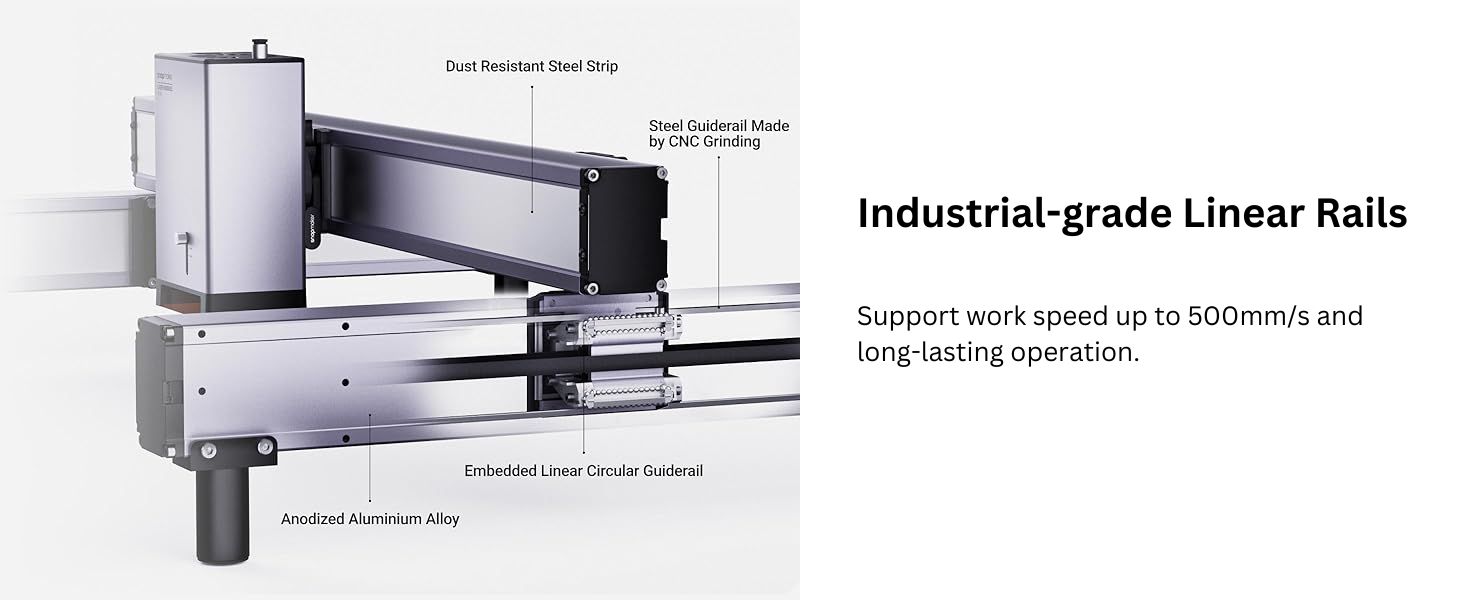

  • [Industrial-grade Linear Rails]: Snapmaker adopted industrial-grade linear rails in Artisan 3-in-1 3D Printer to ensure minimal wobble even in fast CNC machining. The very same industrial-grade linear rails are used in XY-axis of Ray laser cutter to support high speed movement up to 500mm/s and long-lasting operation.

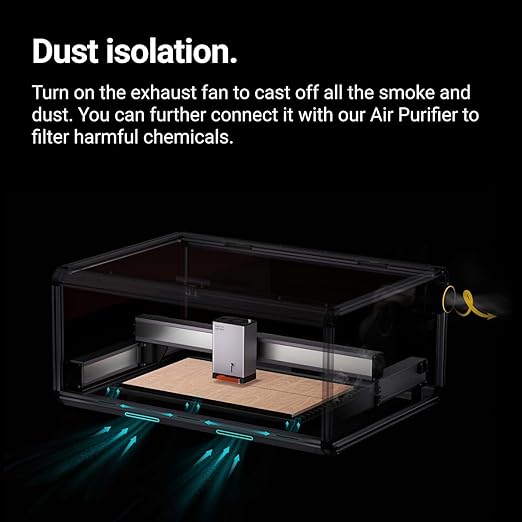

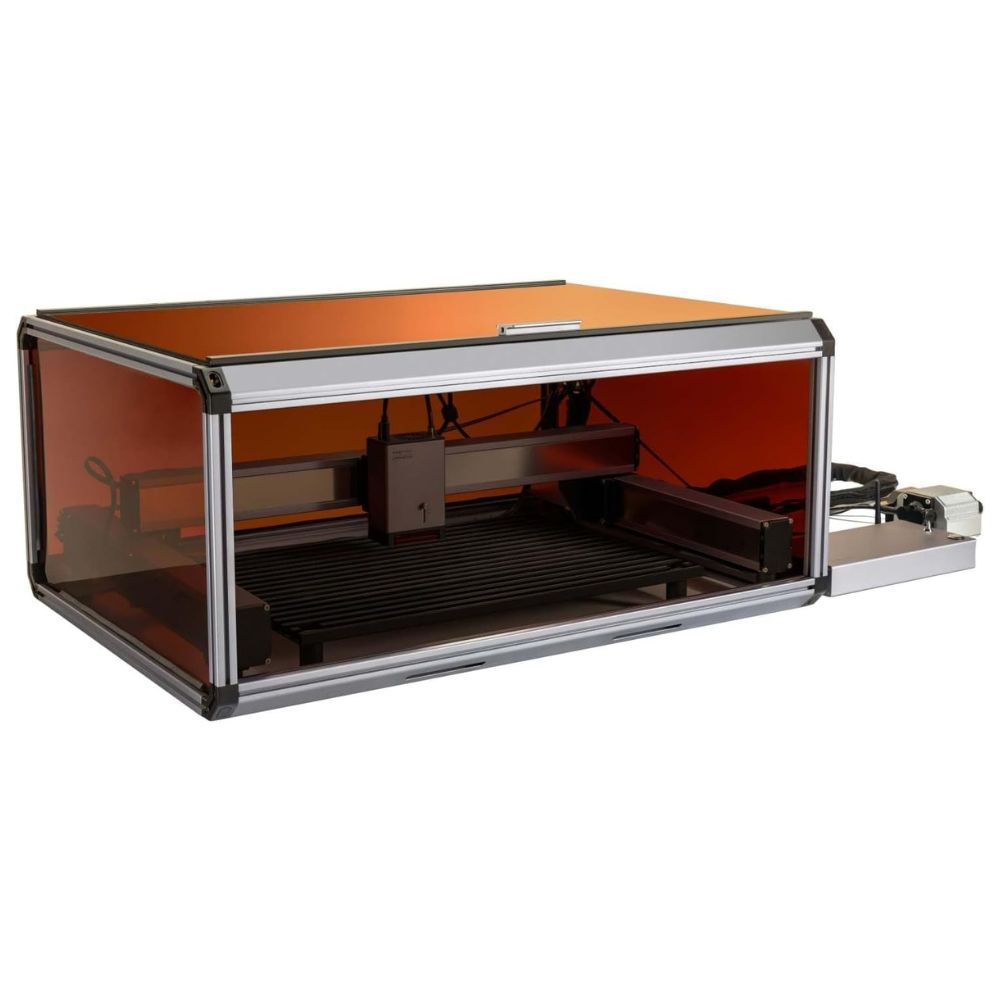

  • [Laser Class 1 Safety]: The Enclosure panels made with brown acrylic are specially designed to shield you from the laser hazards. The embedded door-detection sensor lets Ray automatically stop the laser job when the door is opened. (Please note:The laser engraver enclosure is not included,Please buy separately at our store)
  • 40W Laser Power: High cutting and engraving precision.
  • Large Working Area: 400 x 600 mm for various projects.
  • Air Assist System: Ensures cleaner cuts and reduces smoke.
  • Adjustable Focus: Optimizes for different materials.
  • Wide Material Compatibility: Works with wood, acrylic, leather, and more.
  • Advanced Software: Compatible with Snapmaker Luban for easy design control.
  • Sturdy Construction: Built for stable, long-lasting performance.
  • Safety Features: Includes emergency stop and protection mechanisms.
  • Laser Module Output Power : 40W
  • Laser Electric Power : 140W
  • Machine Power (Enclosure excl.) : 215W
  • Maximum Thickness of One-pass : 15mm Basswood Plywood
  • Maximum Work Speed : 500mm/s
  • Maximum Cutting Speed : 20mm/s
  • Laser Spot Dimensions : 0.1mm x 0.15mm
  • Laser Type : 450 - 460nm Semi-conductor
  • Weight (Enclosure excl.) : 15.06kg
  • Dimension (Enclosure excl.) : 849 x 600 x 303 mm
  • Dimension (Enclosure) : 933 x 665 x 417 mm
  • Maximum Workpiece Height : 160mm (with two sets of cylindrical feet)
  • Work Area : 400 x 600 mm
