Two Trees 500w High Speed Air Cooled Spindle Motor

Two Trees 500w High Speed Air Cooled Spindle Motor
(0 reviews)
Product Features

• This is Two Tree – 500W Air Cooled Powerful Spindle Motor. The Two Trees – 500W Air Cooled Powerful Spindle Motor Kit is a versatile and powerful spindle motor assembly designed for various CNC (Computer Numerical Control) and engraving applications. This kit includes the spindle motor, a spindle mount, a speed controller, and additional accessories.

• It can be used to engrave metal or non-metal and other materials. This spindle comes with forced air cooling, which can work for a long time. The Spindle motor bracket clamp is made of high-quality cast Aluminum, which is robust and durable.

₹16849.00
- +
Add to cart
Add to wishlist Remove from wishlist Compare Ask a question Share

Guarantee Safe Checkout:

  • card
  • card
  • card
  • card

Estimated delivery time: 4-5 business days

Free shipping on all orders

Frequently Bought Together
img-product
Anycubic Glass Plate for Kobra Plus
₹3629.00
img-product
3Idea NX (Next Gen)-PLA Ultra Premium 3D Printing Filament, White 1.75mm, Net Weight-1kg
₹799.00
img-product
Creality Hyper PLA RFID 3D Printing Filament Blue,1.75mm,Net Weight-1kg
₹1479.00
img-product
Creality CR-10 V2/V3 Titan Extrusion Upgrade Kit
₹7249.00
Total price:
₹60.00
Two Trees 500w High Speed Air Cooled Spindle Motor
Add to cart

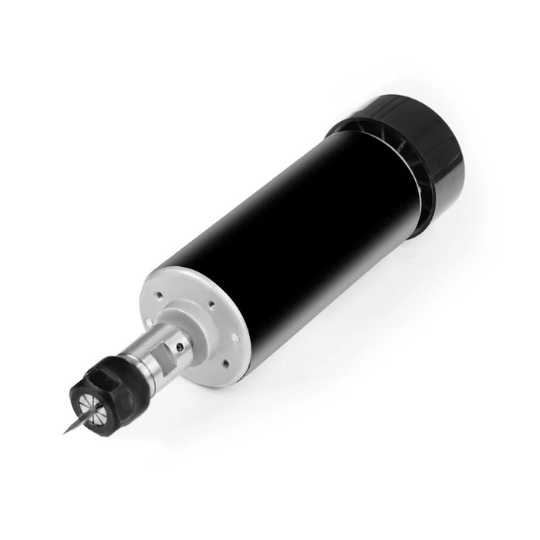

  • 500w High-Speed Air Cooled Powerful Spindle Motor

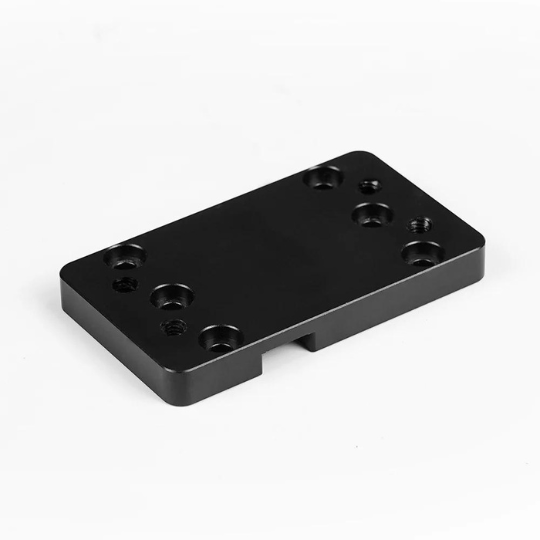

  • Mounting Connection Plate is suitable for TTC 450 CNC Router Machine
  • Long life, Low maintenance costs.
  • Input: AC110V, Idling Speed: 12,000 rev / min, Torque: 0.6N.m.
  • Insulation Resistance:> 2 Megohms, Dielectric Strength: 400V.
  • High Precision Spindle Run Out 0.01-0.03.
  • DC Switching Power Supply: Input Voltage: 110V / 220V AC, Current: 0-12.5A,
  • Input Frequency: 50/60Hz, Output Voltage: DC 48V, (Please Install in the Place that is Draughty)
  • No Dramatic Impact, No Vibration, No Explosion Hazard Medium, No Conductive Metal Particle.
  • Net weight of spindle: 1.4KG
  • This is Two Tree – 500W Air Cooled Powerful Spindle Motor.
  • The Two Trees – 500W Air Cooled Powerful Spindle Motor Kit is a versatile and powerful spindle motor assembly designed for various CNC (Computer Numerical Control) and engraving applications.

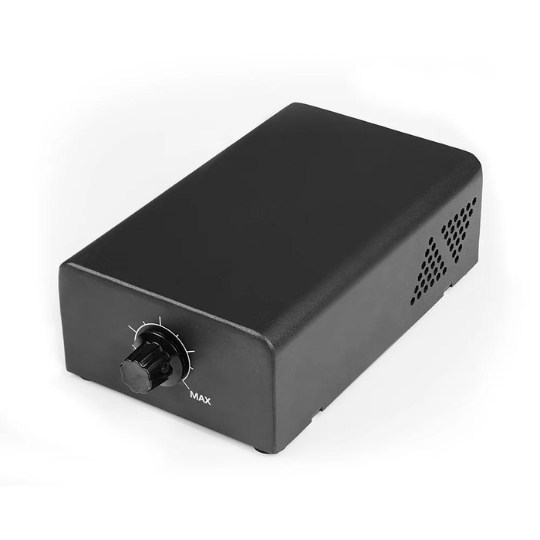

  • This kit includes the spindle motor, a spindle mount, a speed controller, and additional accessories.
  • It can be used to engrave metal or non-metal and other materials.
  • This spindle comes with forced air cooling, which can work for a long time.

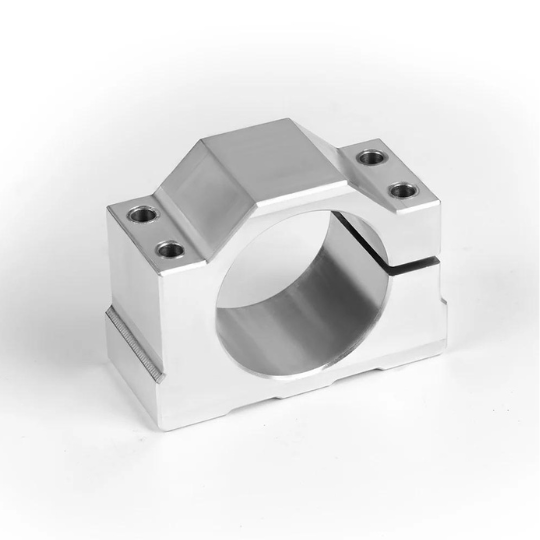

  • The Spindle motor bracket clamp is made of high-quality cast Aluminum, which is robust and durable.
  • Item Type : Engraver Accessory
  • Compatibility : TTC 450
  • Power : 500W
  • Speed (RPM) : 12000
  • Operating Voltage (VDC) : 100
  • Motor Length (mm) : 199
  • Dielectric Strength : 400V
  • Insulation Resistance (MΩ) : > 2
  • Length (mm) : 190
  • Width (mm) : 120
  • Height (mm) : 64
  • Shipping Weight : 3.1 kg
  • Shipping Dimensions : 28 × 27 × 10 cm
